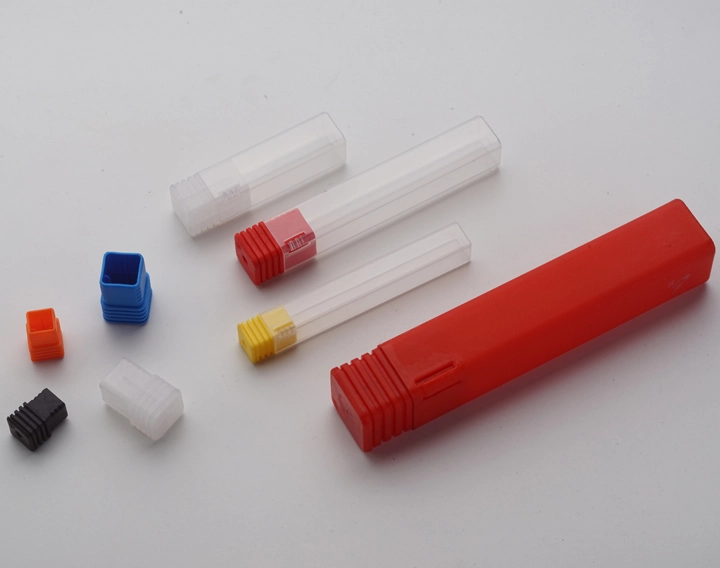

Quality single packaging,with short shank holding base-plug groove in bottom part makes opening easy center adapter to support and secure tool
Attractive design durable and re-usable high Protection for tools cutting edges,sturdy oil and moisture resistant
Want to know more about the product before sample request - Click Here

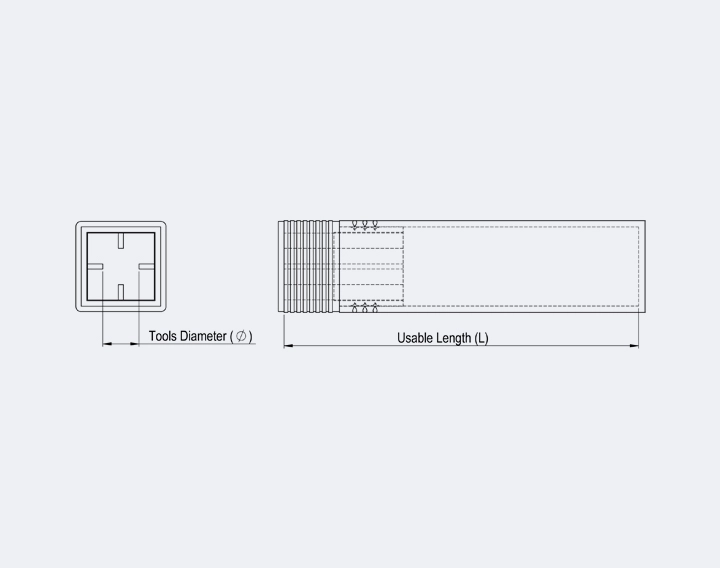

| Item Code | (Ø) Shank Holding | Box Qty | Available Color | |||
|---|---|---|---|---|---|---|
| (mm) | (inch) | |||||
| SHP08-CAP2.35 | 2.35 | 0.093 | 2000 | |||
| SHP08-CAP03 | 3 | 0.118 | 2000 | |||
| SHP08-CAP3.175 | 3.175 | 0.125 | 1/8″ | 2000 | ||
| SHP08-CAP04 | 4 | 0.157 | 2000 | |||
| SHP08-CAP4.762 | 4.762 | 0.187 | 3/16″ | 2000 | ||
| SHP08-CAP05 | 5 | 0.197 | 2000 | |||
| SHP08-CAP06 | 6 | 0.236 | 2000 | |||
| SHP08-CAP6.35 | 6.35 | 0.250 | 1/4″ | 2000 | ||
| SHP08-CAP08 | 8 | 0.315 | 2000 | |||
| Item Code | Inside Width | Usable Length (L) | Box Qty | Available Color | ||
|---|---|---|---|---|---|---|
| (mm) | (mm) | (inch) | ||||
| SHP08-TUBE42 | 10 | 50 | 1.969 | 2000 | ||
| SHP08-TUBE52 | 10 | 60 | 2.362 | 2000 | ||
| SHP08-TUBE70 | 10 | 78 | 3.071 | 2000 | ||
| SHP08-TUBE85 | 10 | 93 | 3.661 | 2000 | ||
| SHP08-TUBE97 | 10 | 105 | 4.134 | 2000 | ||
| Item Code | (Ø) Shank Holding | Box Qty | Available Color | |||
|---|---|---|---|---|---|---|
| (mm) | (inch) | |||||
| SHP13-CAP03 | 3 | 0.118 | 1000 | |||
| SHP13-CAP04 | 4 | 0.157 | 1000 | |||
| SHP13-CAP05 | 5 | 0.197 | 1000 | |||
| SHP13-CAP06 | 6 | 0.236 | 1000 | |||
| SHP13-CAP6.35 | 6.35 | 0.250 | 1/4″ | 1000 | ||
| SHP13-CAP07 | 7 | 0.276 | 1000 | |||
| SHP13-CAP08 | 8 | 0.315 | 1000 | |||
| SHP13-CAP09 | 9 | 0.354 | 1000 | |||
| SHP13-CAP9.525 | 9.525 | 0.375 | 3/8″ | 1000 | ||
| SHP13-CAP10 | 10 | 0.394 | 1000 | |||
| SHP13-CAP11 | 11 | 0.433 | 1000 | |||
| SHP13-CAP11.11 | 11.11 | 0.437 | 7/16″ | 1000 | ||
| SHP13-CAP12 | 12 | 0.472 | 1000 | |||
| SHP13-CAP12.7 | 12.7 | 0.500 | 1/2″ | 1000 | ||
| SHP13-CAP13 | 13 | 0.512 | 1000 | |||
| Item Code | Inside Width | Usable Length (L) | Box Qty | Available Color | ||
|---|---|---|---|---|---|---|
| (mm) | (mm) | (inch) | ||||
| SHP13-TUBE56 | 15 | 66 | 2.598 | 1000 | ||
| SHP13-TUBE74 | 15 | 84 | 3.307 | 1000 | ||
| SHP13-TUBE97 | 15 | 108 | 4.252 | 1000 | ||
| SHP13-TUBE110 | 15 | 120 | 4.724 | 1000 | ||
| Item Code | (Ø) Shank Holding | Box Qty | Available Color | |||
|---|---|---|---|---|---|---|
| (mm) | (inch) | |||||
| SHP18-CAP14 | 14 | 0.551 | 400 | |||
| SHP18-CAP14.287 | 14.287 | 0.562 | 9/16″ | 400 | ||
| SHP18-CAP15.875 | 15.875 | 0.625 | 5/8″ | 400 | ||
| SHP18-CAP16 | 16 | 0.630 | 400 | |||
| Item Code | Inside Width | Usable Length (L) | Box Qty | Available Color | ||
|---|---|---|---|---|---|---|
| (mm) | (mm) | (inch) | ||||
| SHP18-TUBE83 | 21 | 98 | 3.858 | 400 | ||
| SHP18-TUBE130 | 21 | 144 | 5.670 | 400 | ||
| SHP18-TUBE145 | 21 | 158 | 6.220 | 400 | ||
| Item Code | (Ø) Shank Holding | Box Qty | Available Color | |||
|---|---|---|---|---|---|---|
| (mm) | (inch) | |||||
| SHP20-CAP18 | 18 | 0.709 | 300 | |||
| SHP20-CAP19.05 | 19.05 | 0.750 | 3/4″ | 300 | ||
| SHP20-CAP20 | 20 | 0.787 | 300 | |||
| Item Code | Inside Width | Usable Length (L) | Box Qty | Available Color | ||
|---|---|---|---|---|---|---|
| (mm) | (mm) | (inch) | ||||
| SHP20-TUBE62 | 24 | 80 | 3.150 | 300 | ||
| SHP20-TUBE89 | 24 | 107 | 4.213 | 300 | ||
| SHP20-TUBE130 | 24 | 148 | 5.827 | 300 | ||
